| SYSTEM | |

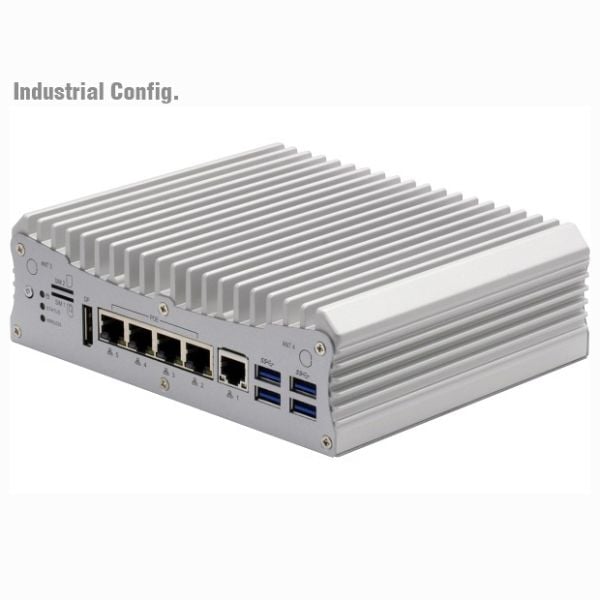

| FORM FACTOR | Multi-PoE & Fanless Appliance |
| PROCESSOR | Intel® Whisky Lake Processor (i7-8665UE) |
| Main Memory | Up to 64GB, DDR4 260-pin SODIMM |
| Display | HDMI x 1, DP x 1 |
| ETHERNET | 1x GbE, Intel i211, support Wake on LAN and PXE supported |
| SMART POE | 4 ports, IEEE 802.3 at/af, sharing 60W of power budget for every four PoE ports. Able to power management in each independent PoE port (SDK available) |
| RAID SUPPORT | 0/1 |
| EXPANSION SLOT | mPCIe Full-Size (USB+PCIe) x 1 mPCIe Full-Size (USB+SATA) colay SATA x 1 M.2 2280 (USB+PCIe), support NVME PCIe [x4] SSD x 1 |
| FRONT I/O PANEL | RJ45 Smart PoE Port (60W) x 4,USB 3.2 Gen 1 x 4, Giga LAN x 1, DP x 1, Power button, Status LED, HDD LED, Wireless LED, Micro SIM slots x 2, Antenna holes x 2 |
| REAR I/O PANEL | jack for Line out & MIC in x 1 HDMI x 1 RS-232/422/485 (Isolated by BOM option) x 2 HW Reset x 1, 3pin Power input x 1 8 bits DIO ( Isolated 4DI & 4DO / 8DI/ 8DO by BOM option) Antenna holes x 2 |
| STORAGE | |
| HDD Tray | 2.5” HDD/SSD Bay x 2 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| STORAGE HUMIDITY | 10%~80% @40°C, non-condensing |
| VIBRATION/SHOCK | MIL-STD-810G |
| CERTIFICATION | CE & FCC Class A |
| POWER REQUIREMENT | |
| POWER SUPPLY | DC 12-24V |
| MECHANICAL | |
| INTERNAL SYSTEM HDD BAY | 2.5” HDD/SSD Bay x 2 |
| DIMENSION | 6.3” x 5.87” x 2.16” (180mm x 149mm x 55mm) |
| GROSS WEIGHT | TBD |
