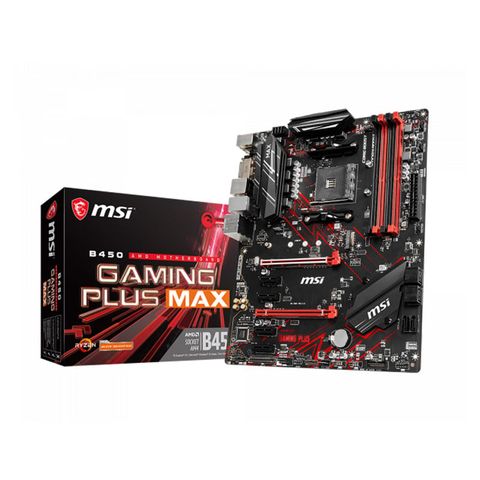

MSI B450 GAMING PLUS MAX

MSI B450 GAMING PLUS MAX

THÔNG SỐ KỸ THUẬT

BỘ XỬ LÝ:

• Hỗ trợ AMD Ryzen™ thế hệ 1, 2 và 3, Ryzen™ với Đồ họa Radeon™ Vega, AMD Ryzen™ thế hệ 2 với Đồ họa Radeon™ và Athlon™ với Bộ xử lý đồ họa Radeon™ Vega cho socket AM4


CHIPSET: AMD® B450 Chipset

BỘ NHỚ:

• 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
• Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
• For AMD Ryzen Gen3 (R5/R7/R9)
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
• For AMD Other CPU
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

SLOTS

• 1 x PCIe 3.0 x16 slot (PCI_E1)
• 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
• Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
• Athlon™ with Radeon™ Vega Graphics support x4 mode
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
• 4 x PCIe 2.0 x1 slots

ĐỒ HỌA TRỰC TUYẾN:

• 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1
• Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

MULTI-GPU: Supports 2-Way AMD® CrossFire™ Technology

LƯU TRỮ:

AMD® CPU

• 2 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

AMD® B450 Chipset

• 4 x SATA 6Gb/s ports

RAID:

AMD® B450 Chipset

• Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

Chipset AMD® B450

• 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
• 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

• 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Codec Realtek® ALC892

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

KẾT NỐI NỘI BỘ

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

CỔNG KẾT NỐI PANEL

• PS/2 Combo Port
• USB 3.2 Gen1
• LAN Port
• HD Audio Connectors
• Flash BIOS Button
• USB 2.0 Ports
• DVI-D Port
• HDMI Port
• USB 3.2 Gen2

KÍCH THƯỚC:

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• Form Factor ATX

HỖ TRỢ HỆ ĐIỀU HÀNH:

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit
