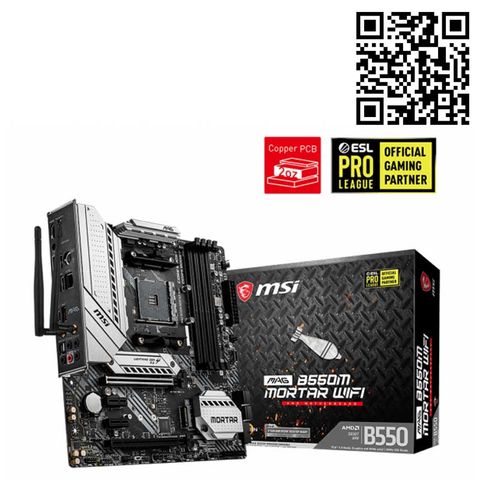

MSI MAG B550M MORTAR WIFI

Chuyên cung cấp MSI MAG B550M MORTAR WIFI nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

MSI MAG B550M MORTAR WIFI

MSI MAG B550M MORTAR WIFI

MSI MAG B550M MORTAR WIFI PHỤ KIỆN KÈM THEO

THÔNG SỐ KỸ THUẬT

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

CHIPSET: AMD B550 Chipset

BỘ NHỚ:

• 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
• 1DPC 1R max speed 4400 MHZ
• 1DPC 2R max speed 3733 MHZ
• 2DPC 1R max speed 3866 MHZ
• 2DPC 2R max speed 3466 MHZ
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

KHE CẮM MỞ RỘNG:

• 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
• 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
• 2x PCIe 3.0 x1 slots

ĐỒ HỌA ONBOARD

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
• Maximum shared memory of 2048 MB

MULTI-GPU: Supports 2-Way AMD CrossFire™ Technology

LƯU TRỮ: Chipset AMD B550

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
• M2_1 slot (from AMD Processor)

+ Supports PCIe 4.0/ 3.0 x4 1

+ Supports SATA 6Gb/s

+ Supports 2242/ 2260/ 2280/ 22110 storage devices

• M2_2 slot (from AMD B550 chipset)

+ Supports PCIe 3.0x4

+ Supports 2242/ 2260/ 2280 storage devices

RAID: Chipset AMD B550

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB:

Chipset AMD B550

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Bộ xử lý AMD

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO: Realtek® ALC1200 Codec

• 1-Channel High Definition Audio
• Supports S/PDIF output

LAN:

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

• Intel® Wi-Fi 6 AX200
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.1

KẾT NỐI NỘI BỘ

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 3x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

 CỔNG KẾT NỐI PHÍA SAU

1. DisplayPort
2. PS/2 Combo Port
3. 5G LAN Port
4. USB 3.2 Gen 2 10Gbps (Type-A)
5. Wi-Fi / Bluetooth
6. HD Audio Connectors
7. HDMI Port
8. Flash BIOS Button
9. USB 2.0 port
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2 10Gbps (Type-C)
12. Optical S/PDIF OUT

 FORM FACTOR

• Micro-ATX Form Factor
• 6 in. x 9.6 in. (24.4 cm x 24.4 cm)

 HỆ ĐIỀU HÀNH: Support for Windows® 10 64-bit
