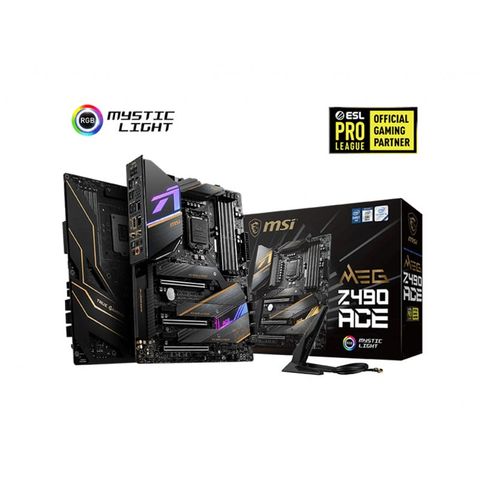

MSI MEG Z490 ACE

Chuyên cung cấp MSI MEG Z490 ACE nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

MSI MEG Z490 ACE

PHỤ KIỆN:

THÔNG SỐ KỸ THUẬT

SẢN PHẨM: Mainboard - Bo mạch chủ

TÊN HÃNG: MSI

MODEL: MSI MEG Z490 ACE

CPU: Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket

CHIPSET: Intel® Z490

MEMORY:

• 4x DDR4 memory slots, support up to 128GB
• Supports 1R 2133/2666/2933 MHz
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4266+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC mode, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

KHE MỞ RỘNG

• 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
• 2x PCIe x1 slots (from PCH)

MULTI-GPU SUPPORT:

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

LƯU TRỮ:

• Intel® Z490 Chipset
• 6x SATA 6Gb/s ports
• 3x M.2 slots (Key M)
• M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
• M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
• Intel® Optane™ Memory Ready
• Supports Intel® Smart Response Technology for Intel Core™ processors

RAID:

Intel® Z490 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
• USB:
• Intel® Z490 Chipset
• 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
• ASMedia® 3241 chipset
• 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

LAN:

• 1x Realtek® 8125B 2.5G LAN controller
• 1x Intel® I219V 1G LAN controller

WIFI & BLUETOOTH:

Intel® AX201

• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• WiFi 6 Pre-Certified
• Supports Bluetooth® 5.1 , FIPS, FISMA
• The Wireless module is pre-install in the M2 (Key-E) slot

AUDIO:

Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

CỔNG KẾT NỐI:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 6x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x Chassis Intrusion connector
• 1x slow mode jumper
• 1x power button
• 1x reset button
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector


BACK I/O PORTS

1. Clear CMOS Button
2. PS/2 Keyboard / Mouse Port
3. 1G LAN
4. 2.5G LAN
5. Wi-Fi /Bluetooth Antenna Connectors
6. HD Audio Connectors
7. Flash BIOS Button
8. USB 2.0 Ports
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. Optical S/PDIF-Out

KÍCH THƯỚC

• 12 in x 9,6 in (30,5 cm x 24,4 cm)
• Yếu tố hình thức ATX

HỆ ĐIỀU HÀNH: Hỗ trợ cho Windows® 10 64-bit
