Chuyên cung cấp MSI MPG B550 GAMING CARBON WIFI nhanh lấy liền tại chỗ trước mặt không để lại máy
Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%
Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

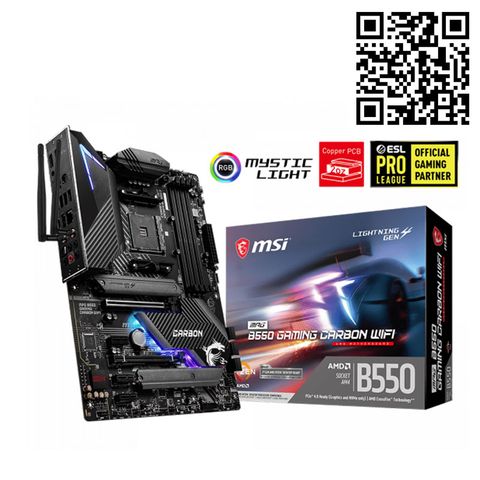

MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI
MSI MPG B550 GAMING CARBON WIFI KÈM PHỤ KIỆN
THÔNG SỐ KỸ THUẬT
CPU
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
CHIPSET: AMD B550 Chipset
BỘ NHỚ:
- 4x DDR4 memory slots, support up to 128GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE
+ 1DPC 1R max speed 5100 MHZ
+ 1DPC 2R max speed 3866 MHZ
+ 2DPC 1R max speed 4000 MHZ
+ 2DPC 2R max speed 3600 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
KHE CẮM MỞ RỘNG:
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
- 3x PCIe 3.0 x1 slots
ĐỒ HỌA ONBOARD
- 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
- Maximum shared memory of 2048 MB
MULTI-GPU: Supports 2-Way AMD CrossFire™ Technology
LƯU TRỮ: Chipset AMD B550
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
+ Supports PCIe 4.0/ 3.0 x4 1
+ Supports SATA 6Gb/s
+ Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD B550 chipset)
+ Supports PCIe 3.0x4
+ Supports 2242/ 2260/ 2280 storage devices
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB: Chipset AMD B550
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Bộ xử lý AMD
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO: Realtek® ALC1200 Codec
- 1-Channel High Definition Audio
- Supports S/PDIF output
LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6 AX200
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.1
KẾT NỐI NỘI BỘ
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 1x RGB CORSAIR connector
- 1x TPM module connector
- 1x Clear CMOS jumper
CỔNG KẾT NỐI PHÍA SAU
- DisplayPort
- PS/2 Combo Port
- USB 2.0
- 5G LAN
- HD Audio Connectors
- HDMI
- Flash BIOS Button
- USB 2.0
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-A+C)
- Wi-Fi / Bluetooth
- Optical S/PDIF OUT
TÍNH NĂNG LED
- 1x EZ LED Control switch
- 4x EZ Debug LED
BỘ ĐIỀU KHIỂN I/O : NUVOTON NCT6687-R Controller Chip
MÀN HÌNH PHẦN CỨNG:
- CPU/ System/ Chipset temperature detection
- CPU/ System/ Pump fan speed detection
- CPU/ System/ Pump fan speed control
FORM FACTOR
- ATX Form Factor
- 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
