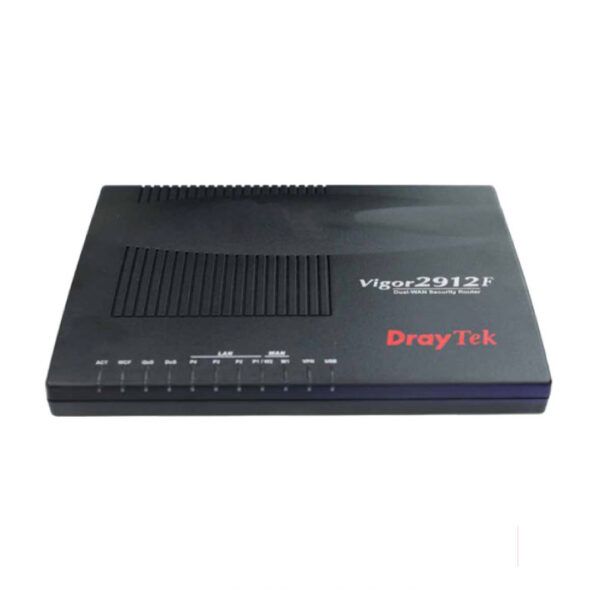

Router Cân Bằng Tải Draytek Vigor2912f

PHẦN CỨNG

Vigor2912F

Port

1 x 10/100 Base-TX WAN, slot SFP, Configurable WAN2 on P1

4 x 10/100 Base-TX LAN, RJ45

1 x USB Host 2.0 (for 3G USB Modem/USB Disk)

Nguồn

DC 12V/1A

Nút điều khiển

1 x Factory Reset Button

PHẦN MỀM

WAN

IPv4 Ethernet WAN

DHCP Client

Static IP

PPPoE

PPTP

L2TP

802.1p/q Multi-VLAN Tagging

IPv6 Ethernet WAN

Tunnel Mode:

PPP

TSPC

AICCU

6in4

6rd*

Dual Stack:

DHCPv6 Client

Static IPv6

DSLite*

USB WAN

PPP

Outbound Policy-based Load-balance

WAN Connection Failover

30,000 NAT Sessions

Network

DHCP Client/Relay/Server

RADVD for IPv6

DHCPv6 Server

Static IPv6 Address Configuration

IGMP Proxy V2/V3

IGMP Snooping

Dynamic DNS

NTP Client

RADIUS Client

DNS Cache/Proxy

UPnP 30 Sessions

Routing Protocol:

Static Routing

RIP V2

VLAN Tagging(802.1q) on LAN*

Support Route Policy Function

Management

Web-based User Interface (HTTP/HTTPS)

Quick Start Wizard

CLI (Command Line Interface, Telnet/SSH)

Administration Access Control

Configuration Backup/Restore

Built-in Diagnostic Function

Firmware Upgrade via TFTP/FTP/HTTP/TR-069

Logging via Syslog

SNMP V2/V3

Management Session Time Out

Two-level Management (Admin/User Mode)

External Device

TR-069

Support Smart Monitor (Up to 30 PCs)

Chất lượng dịch vụ

QoS :

Guarantee Bandwidth for V oIP (VoIP QoS)

Class-based Bandwidth Guarantee by User-defined Traffic Categories

DiffServ Code Point Classifying

4-level Priority for Each Direction (Inbound/Outbound)

Bandwidth Borrowed

Bandwidth/Session Limitation

Layer-3 (TOS/DSCP) QoS Mapping

Smart Bandwidth Limitation (Triggered by Traffic/Session)

VPN

Up to 16 VPN Tunnels

Protocol : PPTP, IPSec, L2TP, L2TP over IPSec

Encryption : MPPE and Hardware-based AES/DES/3DES

Authentication : MD5, SHA-1

IKE Authentication : Pre-shared key and Digital Signature (X.509)

LAN-to-LAN, Host-to-LAN

IPsec NAT-traversal (NAT-T)

Dead Peer Detection (DPD)

VPN Backup Mode

DHCP over IPSec

VPN Pass-through

VPN Wizard

mOTP

Tính năng nâng cao

Firewall

Multi-NAT, DMZ Host, Port-redirection and Open Port

Object-based Firewall

MAC Address Filter

SPI (Stateful Packet Inspection) (Flow Track)

DoS/ DDoS Prevention

IP Address Anti-spoofing

E-mail Alert and Logging via Syslog

Bind IP to MAC Address

Time Schedule Control

User Management

CSM

(Content Security Management)

IM/P2P Application

GlobalView Web Content Filter (Powered by CYREN )

URL Content Filter :

URL Keyword Blocking (Whitelist and Blacklist)

Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking,

Excepting Subnets

USB

File Sharing:

Support FAT32 File System

Support FTP Function for File Sharing

Support Samba for File Sharing

3.5G (HSDPA)/4G (LTE)* as WAN3

THÔNG SỐ KHÁC

Môi trường

Temperature Operating : 0°C ~ 45°C

Temperature Storage : -25°C ~ 70°C

Humidity 10% ~ 90% ( non-condensing )
