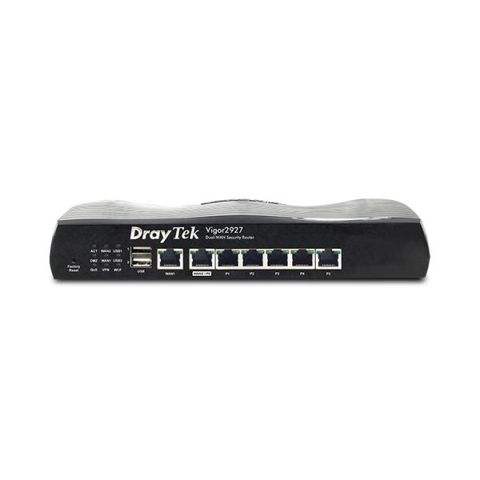

Router Cân Bằng Tải Draytek Vigor2927

PHẦN CỨNG

Vigor2927

Port

2 x GbE WAN

5 x GbE LAN

2 x USB 2.0

Nguồn

DC 12V/2A

Nút điều khiển

1 x Factory Reset Button

PHẦN MỀM

WAN

Ethernet WAN

DHCP Client

Static IP

PPPoE

PPTP / L2TP (WAN-2 only)

802.1q Multi-VLAN Tagging

IPv6 Connection Type

Dual Stack: PPP, DHCPv6 Client, Static IPv6

Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel

USB WAN

PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU

Dual WAN

Load-Balance / Route Policy

Outbound policy-based load-balance

WAN Connection Failover

Multiple-VLAN

Network

Hotspot Web Portal

Packet Forwarding Acceleration

DHCP client/relay/server

DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125

IGMP v2/v3

LAN DNS /DNS Forwarding

Dynamic DNS

NTP Client

RADIUS /TACACS+ Client

Internal RADIUS Server

Active Directory /LDAP compatible (client)

DNS Cache/Proxy and LAN DNS

UPnP 50 sessions

Wake on LAN

Bonjour service

Routing Protocol:

Static Routing

RIP v1/v2

BGP

Triple-Play Application

IGMP snooping/proxy

8 x Multiple Subnet LAN

Management

Web-based User Interface (HTTP/HTTPS)

CLI (Command Line Interface, Telnet/SSH)

Administration Access Control

Configuration Backup/Restore

Built-in Diagnostic Function

Firmware Upgrade via TFTP/HTTP/TR-069

Logging via Syslog

SNMP v2/v3

Support SMS/E-mail Alert

Management Session Time Out

Two-level Management (Admin/User Mode)

External device detection (master mode)

TR-069/TR-104

Support Multiple-Firmware Upgrade Utility (MFUU)

Dashboard

Chất lượng dịch vụ

QoS

Guarantee bandwidth for VoIP

Class-based bandwidth guarantee by user-defined traffic categories

DiffServ Code Point classifying

4-level priority for each direction (Inbound/Outbound)

Bandwidth borrowed

Bandwidth/Session limitation

Smart Bandwidth Limit

config by ip range

Layer-3 (TOS/DSCP) QoS

Layer-2 (802.1p) QoS

WAN budget

VPN

Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)

VPN Wizard

VPN Trunk with Backup / Load Balance

Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec

Encryption : MPPE and hardware-based AES/DES/3DES

Authentication : SHA

IKE Authentication : Pre-shared Key and Digital Signature (X.509)

LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)

DHCP over IPsec

IPsec NAT-traversal (NAT-T)

Dead Peer Detection (DPD)

VPN Pass-through

mOTP

Tính năng nâng cao

Firewall

DMZ Host：Port-redirection, Open Port, Port Triggering

User-based / Rule-based Firewall

Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track)

DoS Prevention

Time Schedule Control

DNS Filter Enhancement

User Management

Firewall Wizard Mode and Advanced Mode

 CSM (Content Security Management)

APP Enforcement

Support APPE Signature Upgrade by license

URL Content Filter

Access Control : URL Keyword Blocking (White/Black List)

Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking

Web Content Filter (support Cyren and BPjM)

DNS Filter

Central Device Management

AP Management

VPN Management

Switch Management

External Devices

USB

File System

Support FAT32 File System

Support FTP Function for File Sharing

3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN)

USB Device Status (disk/modem/printer/sensor)

Support USB Temperature Sensor

Support file sharing (DrayTek’s own SMB protocol stack)

THÔNG SỐ KHÁC

Môi trường

Temperature   Operating : 0°C ~ 45°C

Temperature  Storage : -25°C ~ 70°C

Humidity :10% ~ 90% ( non-condensing )
