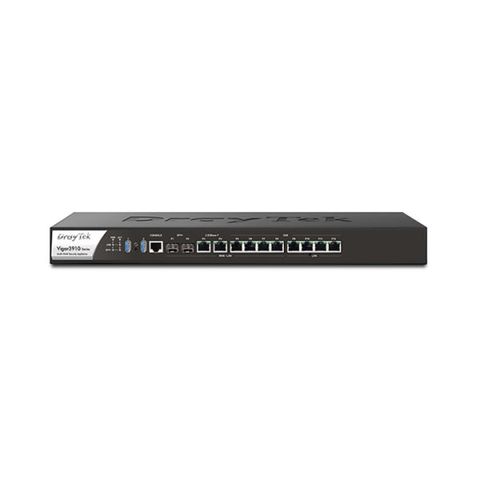

Router Cân Bằng Tải Draytek Vigor3910 10g High-performance

PHẦN CỨNG

Vigor3910

Port

WAN

1x 10G/1G SFP+ Fiber Slot (P1)

1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3)

4x 1G/100M/10M Ethernet, RJ-45 (P5-P8)

LAN

1x 10G/1G SFP+ Fiber Slot (P2)

1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P4)

4x 1G/100M/10M Ethernet, RJ-45 (P9-P12)

USB

2x USB 3.0

Console

1 cổng console RJ45

Nguồn

AC 100~240V, 50/60Hz

Power Consumption 35 watt

Nút điều khiển

1 Button Factory

Kích thước

443 mm x 285 mm x 45 mm

Trọng lượng

3.23 kg

PHẦN MỀM

WAN

Multi-WAN  (10Gb/2.5Gb/1Gb)

Outbound Policy-based Load-balance

WAN Connection Failover

WAN Protocol

DHCP Client

Static IP

PPPoE

PPTP

L2TP

Network

Packet Forwarding Acceleration

DHCP client/relay/server

DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125

IGMP v2/v3

LAN DNS /DNS Forwarding

Dynamic DNS

NTP client

Call scheduling

RADIUS /TACACS+ Client

RADIUS Server

Active Directory /LDAP compatible (client)

DNS cache/proxy

UPnP 50 sessions

Wake on LAN

Bonjour service

Routing protocol :

Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)

RIP v1/v2

Management

Web-Based User Interface (HTTP/HTTPS)

Quick Start Wizard

CLI (Command Line Interface, Telnet/SSH)

Administration Access Control

Configuration Backup/Restore

Built-in Diagnostic Function

Firmware Upgrade via TFTP/FTP/HTTP/TR-069

Logging via Syslog

SNMP Management with MIB-II

Management Session Time Out

2-level management (Admin/User Mode)

TR-069 Management

TR-104 Management

Chất lượng dịch vụ

QoS :

Guarantee Bandwidth for VoIP

Class-based Bandwidth Guarantee by User-defined Traffic Categories

DiffServ Code Point Classifying

4-level Priority for Each Direction (Inbound/Outbound)

Bandwidth Borrowed

Bandwidth / Session Limitation

Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *

VPN

VPN

Up to 500 VPN Tunnels (including 200 SSL VPN tunnels)

Protocol: PPTP, IPSec, L2TP, L2TP over IPSec

Encryption: MPPE and Hardware-based AES/DES/3DES

Authentication: MD5, SHA-1

IKE Authentication: Pre-shared Key and Digital Signature (X.509)

LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)

DHCP over IPSec

IPSec NAT-Traversal (NAT-T)

Dead Peer Detection (DPD)

VPN Pass-Through

mOTP

Tính năng nâng cao

 Firewall

DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)

Object-based Firewall

MAC Address Filter

SPI (Stateful Packet Inspection) (Flow Track)

DoS Prevention

IP Address Anti-Spoofing

E-mail alert and logging via Syslog

Bind IP to MAC Address

Time Schedule Control

Central Device Management

AP Management : 30 nodes (independent with External Device feature)*

Central VPN Management : 8 nodes

Switch Management : 10 nodes *

Content Security Management (CSM)

APP Enforcement

Support APPE Signature Upgrade by license.

URL Content Filter

Access Control : URL Keyword Blocking (White/Black List)

Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking

Web Content Filter (support Cyren and BPjM )

USB

3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle

(USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)

File System :

Support FAT32 / FAT16 file system

Support FTP function for File Sharing
