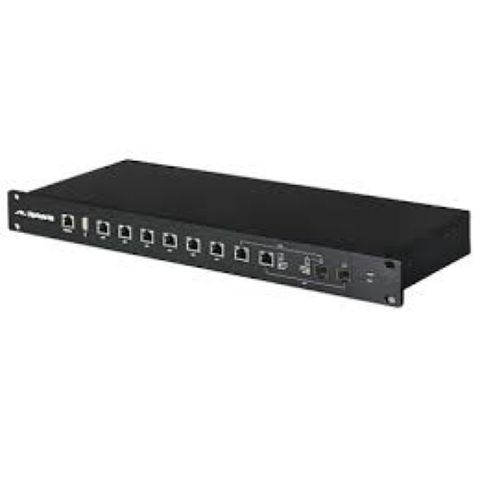

Router và Cân Bằng Tải Ubiquiti EdgeRouter 12

EdgeRouter 12 (ER-12)

Dimensions

268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")

Weight

700 g (1.54 lb)

Management Interface

(1) RJ45 Serial Port

(10) Ethernet Ports (Default Port 0)

(10) 10/100/1000 RJ45 Ports

Networking Interface

Port 0 Supports PoE IN

Port 9 Supports PoE Out

(2) 1 Gbps SFP Ports

Processor

4-Core 1 GHz MIPS64

System Memory

1 GB DDR3 RAM

On-Board Flash Storage

4 GB eMMC, 8 MB SPI NOR

Max. Power Consumption

20W (Excludes PoE Output)

Power Method

External AC/DC Power Adapter, 24W (24V, 1A) (Included)

24V Passive PoE

Power Supply

External AC/DC Adapter

Passive PoE

Voltage Range

Max. Wattage per Port

DC/PoE Passthrough

20W (24V)

Supported Voltage Range

9 - 30VDC

Button

Reset

LEDs

System

Data Ports

SFP Data Port

Power

Speed/Link/Activity;PoE (Ports 0 and 9 only)

Link/Activity

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature

-10 to 50° C (14 to 122° F)

Operating Humidity

10 - 90% Noncondensing

Certifications

CE, FCC, IC

PoE

PoE Interface

 PoE In

 PoE Out

(1) 24V Passive PoE Port, 2-pair (4,5+; 7,8-)

(1) 24V Passive PoE Port, 2-pair (4,5+; 7,8-)

Passive PoE Max. Wattage Per Port

20W (24V, 0.83A)

Passive PoE Output

DC/PoE Passthrough
