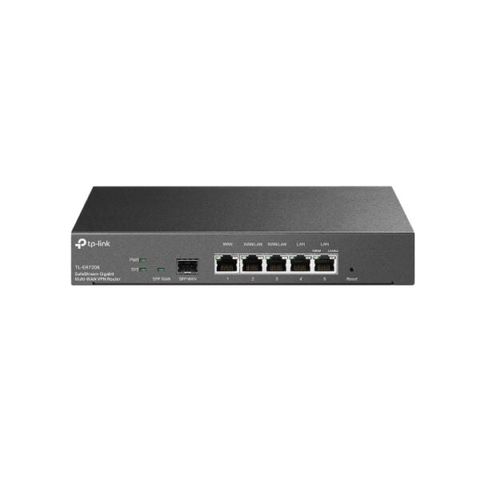

Safestream Gigabit Multi-wan Vpn Router Tp-link Tl-er7206

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

• 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

100–240 V~50/60 Hz

Flash

SPI 4MB + NAND 128MB

DRAM

512MB

LED

PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H )

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Concurrent Session

150,000

IPsec VPN Throughput

291.6 Mbps

WAN Connection Type

• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP

MAC Clone

Modify WAN/LAN MAC Address^†

DHCP

• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*

IPv6

Developing^‡

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing
• Policy Routing

Bandwidth Control

• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing^§, Failover)
• Online Detection

NAT

• One-to-One NAT^§
• Multi-Net NAT
• Virtual Server
• Port Triggering^§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security

• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management

Session Limit

IP-based Session Limit

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server
• 10 PPTP VPN Clients
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server
• 10 L2TP VPN Clients
• 50 Tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN Server*
• 10 OpenVPN Clients*
• 50 OpenVPN Tunnels*

Filtering

WEB Group Filtering^§
URL Filtering
Web Security^§

ARP Inspection

• Sending GARP Packets^§
• ARP Scanning^§
• IP-MAC Binding^§

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

Web Authentication

• No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook*

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)^§
• NTP Synchronize^§
• Syslog Support

Management Features

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)**

Certification

CE, FCC, RoHS

Package Contents

• TL-ER7206
• Power Cord
• Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
