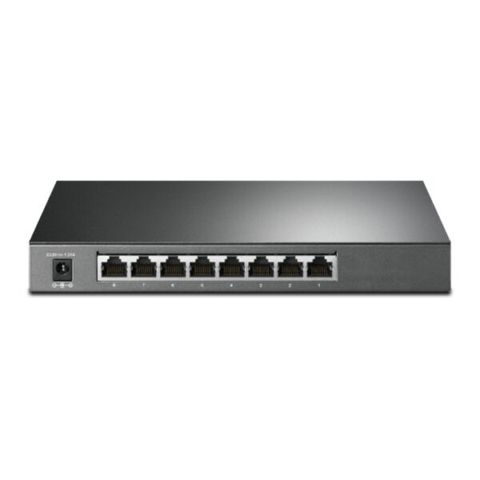

Smart Gigabit Switch 8 Port Poe+ Tp-link Tl-sg2008p

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Power Supply

• External Power Adapter (Output: 53.5 VDC/ 1.3 A)

Power Consumption

• 7.9 W (no power device connected)
• 79.2 W (with 62 W power devices connected)

PoE Ports (RJ45)

• Standard: 802.3af/at compliant
• PoE Ports: 4 Ports
• Power Supply: 62 W*

Dimensions ( W x D x H )

8.2 x 4.9 x 1.0 in.
(209 x 126 x 26mm)

Bandwidth/Backplane

16 Gbps

MAC Address Table

8k

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

Quality of Service

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

• DHCP Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L2 Multicast

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP

VLAN

• VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List

• Support up to 230 entries
• Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
– Permit/Deny
• Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
• ACL Rules Binding
– Port Binding
– VLAN Binding
• Actions for flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark

Security

• AAA
• 802.1X
– Port-based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Guard
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC-based access control

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

Certification

CE, FCC, RoHS

Package Contents

• TL-SG2008P
• Power Adapter
• Installation Guide
• Rubber Feet

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
