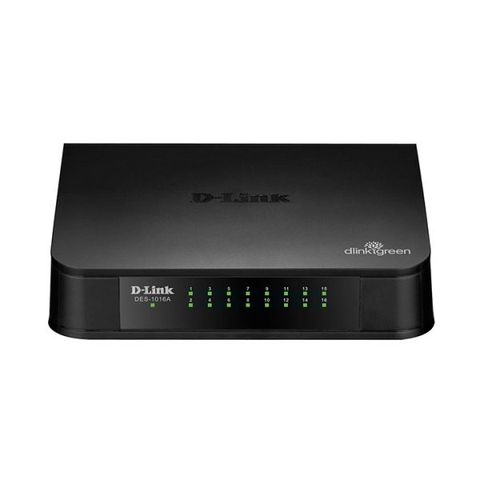

Switch 16 Port Ethernet 10/100mbps D-link Des-1016a

Model

DES-1016A

Key Features

Built-in D-Link Green Technology

Inexpensive Fast Ethernet solution for Home/SOHO

Sixteen 10/100 Mbps Fast Ethernet ports ƒ 3.2 Gbps switching fabric

Auto MDI/MDIX crossover for all ports

Secure store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

IEEE 802.3x Flow Control

Supports 9,216 Byte Jumbo Frames

RoHS compliant

Plug-and-play installation

Standards

IEEE 802.1P QoS support

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3az Energy-Efficient Ethernet (EEE)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.

EIA/TIA-586 100-ohm STP (100 m max.) ƒ 100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

8K entries per device

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

RAM Buffer

256 KBytes per device

DC Input

Switching 5 V / 1 A Level “V” Power Adapter

Power Consumption

Power On (Standby): ƒ AC input: 2.36 watts ƒ DC input: 1.2 watts

Maximum: ƒ AC input: 2.69 watts ƒ DC input: 1.6 watts

Operating Temperature

0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

-10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Device Dimensions (W x D x H)

155.7 x 122 x 41 mm (6.13 x 4.80 x 1.61 inches)

Certifications

CE Class B

FCC class B

CB

RoHS

EuP
