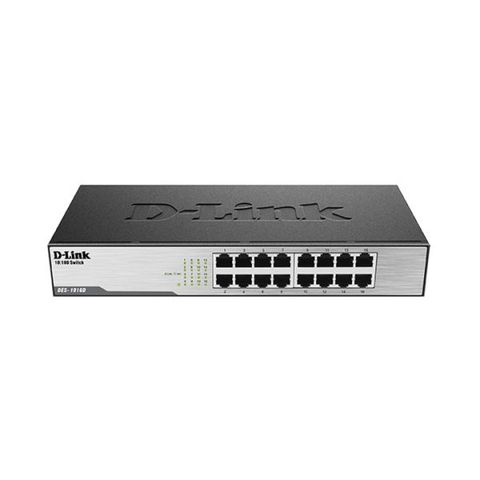

Switch 16 Port Ethernet 10/100mbps D-link Des-1016d

Model

DES-1016D

Key Features

Inexpensive Fast Ethernet solution for SOHO/SMB

ƒAuto MDI/MDIX crossover for all ports

Store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

IEEE 802.3x Flow Control

Plug-and-play installation

Switching fabric

DES-1016D: ƒ 3.2 Gbps switching fabric

DES-1024D: ƒ 4.8 Gbpsswitching fabric

Standards

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

ƒANSI/IEEE 802.3 NWay Auto-Negotiation

IEEE 802.3x Flow Control

IEEE 802.3az EEE function

Protocol

CSMA/CD

Data Transfer Rates

Ethernet:

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet:

100 Mbps (half duplex)

200 Mbps (full duplex)

Number of Ports

ƒDES-1016D: ƒ 16 10/100Mbps Fast Ethernet ports

DES-1024D: ƒ 24 10/100Mbps Fast Ethernet ports

Topology

Star

Network Cables

10BASE-T:

ƒUTP CAT 3/4/5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX ƒUTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

ƒAuto MDI/MDIX adjustment for all ports

LED Indicators

Per port: ƒ Link/Activity

Per device: ƒ Power

Transmission Method

Store-and-forward

MAC Address Table

8K entries per device

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates (half duplex)

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

RAM Buffer

ƒDES-1016D: 256 Bytes (2M bits)

DES-1024D: 256 Bytes (2M bits)

POWER Input

100~240 V AC 50/60 Hz internal universal power supply

MTBF

DES-1016D: 2,266,559 hours

DES-1024D: 2,058,943 hours

Operating Temperature

0 ˚ to 40 ˚C (32 ˚ to 104 ˚F)

Storage Temperature

-10 ˚ to 70 ˚C (14 ˚ to 158 ˚F)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Dimensions (W x D x H)

280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)

certifications

FCC Class A

ICES-003 Class A

CE Class A

C-Tick Class A

VCCI Class A

cUL

LVD
