C1000FE-48P-4G-L – báo giá phân phối Cisco C1000FE-48P-4G-L Cisco Catalyst 1000 48 cổng 10/100 Ethernet PoE+ and 370W PoE budget ports, 2 port 1G SFP and RJ-45 combo uplinks chính hãng, một cấu hình vượt trội đặc biệt thích hợp cho hệ thống mạng các doanh nghiệp hiện nay.
Vẫn luôn được đông đảo Qúy khách hàng đánh giá rất cao Cisco C1000FE-48P-4G-L thiết bị chuyển mạch Switch Cisco Catalyst C1000 Series thế hệ mới mà Cisco mới đưa ra thị trường nhằm thay thế dòng Switch Cisco C2960X luôn đảm bảo được các yêu cầu về hiệu năng. Cisco C1000FE-48P-4G-L có thể nói là bản nâng cấp vì Cisco đã nghiên cứu dựa trên những tính năng cũ của Switch Cisco C2960X và ngoài ra nó cũng được coi là giải pháp tốt nhất ở thời điểm hiện tại giúp cho doanh nghiệp tiết kiệm một khoản chi phí sử dụng, linh hoạt hơn cho việc triển khai lắp đặt và mở rộng quy mô sử dụng.

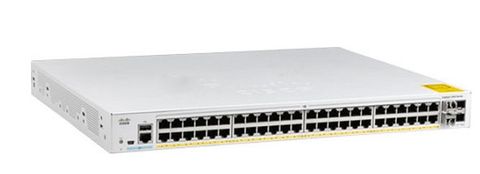

Hình ảnh: Cisco C1000FE-48P-4G-L Catalyst 1000 48 PoE FE, 2x1G SFP, 2x1G combo uplinks
Model | C1000-48P-4G-L |
General | |
Gigabit Ethernet / FE ports | 48 10/100/1000 RJ45 PoE+ |
Uplink interfaces | 4 SFP |
PoE+power budget | 370W |
Fanless | N |
Dimensions (WxDxH) | 17.48 x 13.78 x 1.73 inch |
Weight | 5.43kg |
RJ-45 Ethernet | 1 |
USB mini-B | 1 |
USB-A port for storage and Bluetooth console | 1 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 52 Gbps |
Switching bandwidth | 104 Gbps |
Forwarding rate (64‑byte L3 packets) | 77.38 Mpps |
MAC addresses | 16000 |
IPv4 unicast direct routes | 542 |
IPv4 unicast indirect routes | 256 |
IPv6 unicast direct routes | 414 |
IPv6 unicast indirect routes | 128 |
IPv4 multicast routes and IGMP groups | 1024 |
IPv6 multicast groups | 1024 |
IPv4/MAC security ACEs | 600 |
IPv6 security ACEs | 600 |
Maximum active VLANs | 256 |
VLAN IDs available | 4094 |
Maximum STP instances | 64 |
Maximum SPAN sessions | 4 |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours | 856,329 |
Environmental | |
Up to 5,000ft (1500 m) | -5 to 45 deg C |
Upto 10,000 (3000 m) | -5 to 40 deg C |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40 deg C (non-condensing) |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidi | 5% to 95% at 65 deg C (non-condensing) |
Electrical | |
Voltage (auto ranging) | 110 to 220V AC in |
Frequency | 50 to 60 Hz |
Current | 0.37A to 0.64A |
Power rating (maximum consumption) | 0.48 kVA |
Safety and compliance | |
Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 |
GB 4943.1-2011 | |
EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
Telco | Common Language Equipment Identifier (CLEI) code |
U.S. government certifications | USGv6 and IPv6 Ready Logo |
Connectors and interfaces | |
Indicator LEDs | Per-port status: link integrity, disabled, activity |
System status: System | |
Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | |
Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
Models have external power supply |
