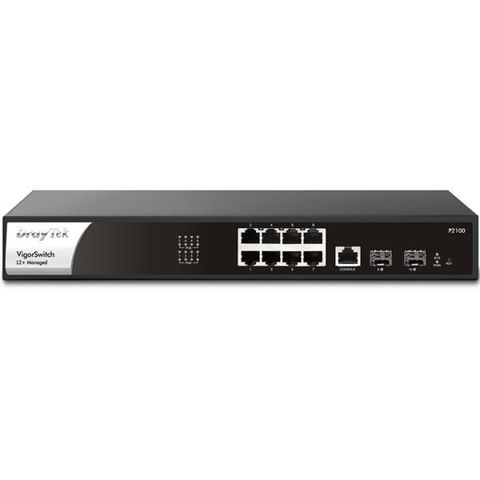

Switch Draytek Vigorswitch P2100 8-port Poe+

P2100

PHẦN CỨNG

Port

8x 10/100/1000Mbps Ethernet, RJ-45

2x 1000Mbps SFP slot

1x RJ-45 console

Nguồn

Voltage: 100 ~ 240VAC @2.6A

PoE Power Budget 140 Watt

Nút điều khiển

1 Factory Reset Button

Kích thước

319(W) x 208(D) x 45(H)

Trọng lượng

2.61 kg (5 lb)

PHẦN MỀM

Chuẩn tương thích

802.3af PoE

802.3at PoE+

802.3 10Base-T

802.3u 100Base-T

802.3ab 1000Base-T

802.3x Flow Control

802.3 Auto-Negotiation

802.1q Tag-based VLAN

802.1p Class of Service

802.1d STP

802.1w RSTP

802.1s MSTP

802.3ad LACP

802.1ad QinQ

802.1x Port Access Control

802.1AB LLDP

802.3az EEE

Network

IP Version: IPv4, IPv6

Management

Web Interface: HTTP , HTTPS

Command Line Interface: Telnet, SSH v2

OpenVPN Client: Certificate-based authentication

User Authentication: Local Database, RADIUS, T ACACS+

SNMP v1, v2c, v3

Private MIB

RMON Group 1, 2, 3, 9

LLDP: LLDP-MED, Media Endpoint, Discovery Extension

Mail Alert: Port Status, Port Speed, System Restart, IP Conflict, Harware Monitor, Device Check, ONVIF Throughput Threshold

Syslog

2-Level Admin Privilege

Multiple Admin Accounts

Managed by VigorRouter SWM

Managed by VigorConnect

Managed by VigorACS 2

Config File Export/Import

SNTP

Diagnostics Tools: Port Mirroring, Ping, Cable Test

Chất lượng dịch vụ

Number of QoS Queues: 8

Queue Scheduling: SPQ, WRR

CoS (Class of Service): 802.1p CoS, DSCP , CoS-DSCP , IP Precedence

Rate Limit & Shaping

Tính năng nâng cao

VLAN

Number of VLAN: 256

VLAN type: 802.1q Tag-based, MAC-based,Protocol-Based,Management VLAN, Voice VLAN, Surveillance VLAN

802.1x Guest VLAN

Port Isolation

GVRP

Q-in-Q basic

ONVIF Surveillance

Discovery

Surveillance Topology

Real-Time Video Streaming

ONVIF Device Maintenance: Device Info, Reset Factory Default, Time Settings, Reboot

Security

Access Control List

Storm Control

DoS Defense

802.1x Port Access Control

IP Source Guard

IP Conflict Detection

IP Conflict Prevention

Loop Protection

Dynamic ARP Inspection

DHCP Snooping with Option 82

Link Aggregation

Max. Number of Group: 4

Type: Static, LACP

Traffic Load Balancing : MAC Address, IP/MAC Address

Multicast

IGMP Snooping: v2, v3 (BISS)

IGMP Querier

MLD Snooping: v1, v2 (Basic)

Max. Number of Multicast Group: 256

Group Throttling

Group Filtering

MVR (Multicast VLAN Registration)

Layer 3 Features

Static Route, VLAN Route, DHCP Server

AAA

Authentication Server: RADIUS, TACACS+

Port Authorization

Management Account

RADIUS Attribute Assignment: User Privilege, VLAN

Accounting

Multiple Server

PoE

PoE Capable Ports: 8

PoE Standards PoE/PoE+(802.3af/802.3at), Type mode A

Power Limit

Scheduled On/Off

Power Cycle on Port

Manual, Ping Watchdog

THÔNG SỐ KHÁC

Môi trường

Temperature Operating: 0°C ~ 40°C

Temperature Storage: -20°C ~ 70°C

Humidity Operating: 10% ~ 90% (non-condensing)

Humidity Storage: 5% ~ 90%(non-condensing)
