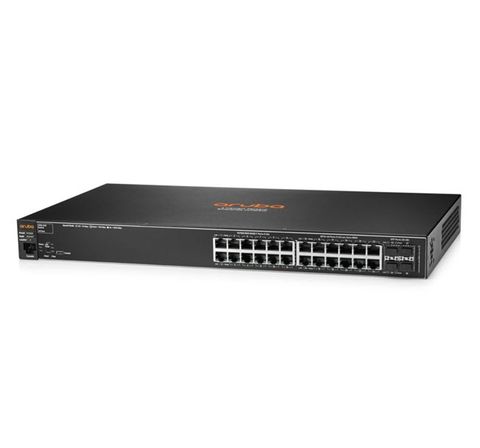

Switch HPE Aruba 2530-24G (J9776A) 24 port 1G, 2 port 1G dual SFP or RJ45
– Fixed Port Layer-2 Managed Ethernet Switch.
– 24 RJ-45 autosensing 10/100/1000 ports, 4 dual-personality ports; RJ-45 10/100/1000 or SFP slot
Specifications
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | |
| 4 fixed Gigabit Ethernet SFP ports | ||
| 1 dual-personality (RJ-45 or USB micro-B) serial console port | ||
| Supports a maximum of 28 Gigabit Ethernet ports | ||
| Physical characteristics | Dimensions | 17.44(w) x 10.00(d) x 1.75(h) in (44.3 x 25.4 x 4.45 cm) (1U height) |
| Weight | 6.1 lb (2.77 kg) | |
| Memory and processor | Processor | ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | |
| Performance | IPv6 Ready Certified | |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) | |
| 1000 Mb Latency | < 2.3 µs (LIFO 64-byte packets) | |
| Throughput | up to 41.6 million pps (64-byte packets) | |
| Switching capacity | 56 Gbps | |
| MAC address table size | 16000 entries | |
| Environment | Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing | |
| Non-operating/ | -40°F to 158°F (-40°C to 70°C) | |
| Storage temperature | ||
| Non-operating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing | |
| Altitude | up to 10,000 ft (3 km) | |
| Acoustic | Power: 26.4 dB, Pressure: 34.0 dB | |
| Electrical characteristics | Frequency | 50/60 Hz |
| Maximum heat dissipation | 164 BTU/hr (173.02 kJ/hr) | |
| AC voltage | 100-127/200-240 VAC | |
| Current | .6/.4 A | |
| Maximum power rating | 48.0 W | |
| Idle power | 28.8 W | |
| Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 | |
| Emissions | FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A | |
| Immunity | Generic | EN 55024, CISPR 24 |
| EN | EN 55024, CISPR 24 | |
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | IEC 61000-4-11 | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB | |
| Notes | IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision ‘B’ or later (product number ends with the letter ‘B’ or later, e.g., J4858B, J4859C) are required | |
