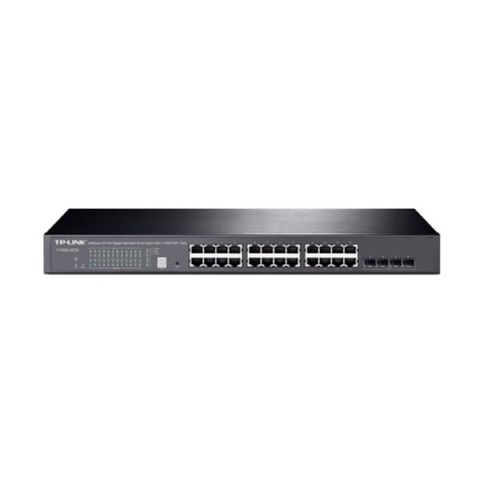

Switch Tp-link 24 Port Gigabit Smart Switch T1700g-28tq

Standards and Protocols

IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE802.3z
IEEE 802.3ae
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1Q
IEEE 802.1x
IEEE 802.1p

Interface

24 × 10/100/1000Mbps RJ45 Ports
4 × 10G SFP+ Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

100-240V, 50/60Hz

Weight

6.2lb

Dimensions ( W x D x H )

17.32 × 7.1 × 1.73 in.
(440 × 180 × 44 mm)

Mounting

19″ 1U Rack Mountable

Max Power Consumption

21.8W

Max Heat Dissipation

74.4.BTU/h

Max Number of Stacking Ports Installable

2 SFP+

Stacking Speed (Per Port)

20Gbps (Full-Duplex)

No. of Units Per Stack

Up to 6 units

Switching Capacity

Up to 128Gbps for a standalone switch

Packet Forwarding Rate

Up to 95.2Mpps for a standalone switch

MAC Address Table

16K

Packet Buffer Memory

1.5MB

Jumbo Frame

9KB

Number of Static Routes

32 IPv4

Number of IP Interfaces

16

Quality of Service

Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN

L2 and L2+ Features

Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN

Access Control List

L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL

Security

AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend

IPv6

Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6

IPv6 Applications

DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image

Certification

CE, FCC, RoHS

Package Contents

T1700G-28TQ
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
