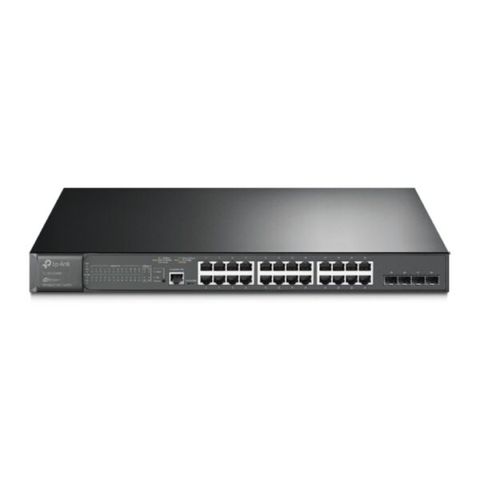

Switch Tp-link Quản Lý Jetstream L2 – 28 Poe+ Tl-sg3428mp

Giao diện

• 24 cổng RJ45 10/100/1000Mbps
• 4 khe Gigabit SFP
• 1 cổng Console RJ45
• 1 cổng Console Micro-USB

Số lượng quạt

2

Bộ cấp nguồn

100-240 V AC~50/60 Hz

Cổng PoE+ (RJ45)

• Tiêu chuẩn: tuân theo 802.3at/af
• Cổng PoE+: 24 cổng, lên tới 30 W mỗi cổng
• Tổng nguồn: 384 W

Kích thước ( R x D x C )

17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Lắp

Giá Đỡ

Tiêu thụ điện tối đa

• 31.0 W (110 V/60 Hz) (no PD connected)
• 463.8 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation

• 105.78 BTU/h (110 V/60 Hz) (no PD connected)
• 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

Switching Capacity

56 Gbps

Tốc độ chuyển gói

41.66 Mpps

Bảng địa chỉ MAC

8K

Khung Jumbo

9 KB

Chất lượng dịch vụ

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark

L2 and L2+ Features

• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
– Port-based
– VLAN based
• Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both

L2 Multicast

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

• VLAN Group
– Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
• Voice VLAN

Access Control List

• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
-Source IP
– Destination IP
– Fragment
– IP Protocol
– TCP Flag
– TCP/UDP Port
– DSCP/IP TOS
– User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
• ACL apply to Port/VLAN

Bảo mật

• IP-MAC-Port Binding
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC-Port Binding
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
– Port based authentication
– Mac based authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP

L3 Features

• 16 IPv4/IPv6 Interfaces
• Static Routing
– 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay

Quản lý

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Advanced Features

• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)*

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

• Switch TL-SG3428MP
• Dây điện
• Hướng dẫn cài đặt nhanh
• Bộ giá đỡ
• Chân đế cao su

Môi trường

• Nhiệt độ hoạt động: 0–45 ℃ (32–113 ℉);
• Nhiệt độ lưu trữ: -40–70 ℃ (-40–158 ℉)
• Độ ẩm hoạt động: 10–90% RH không ngưng tụ
• Độ ẩm lưu trữ: 5–90% RH không ngưng tụ
