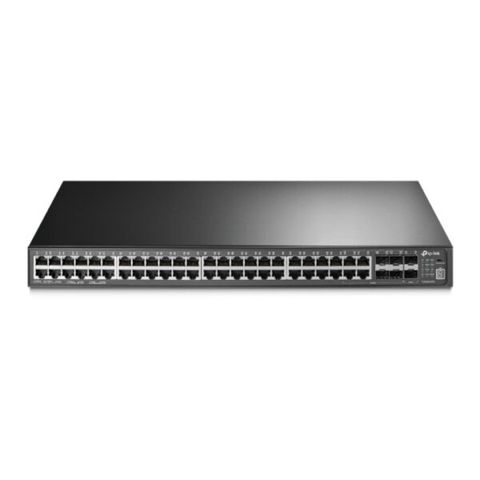

Switch Tp-link T3700g-52tq 52-port 10/100/1000mbps

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface

48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo Gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional)
1 Micro-USB, 1 RJ45 Console Port
1 Management Port
1 USB Slot

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR

Fan Quantity

2 Removable

Physical Security Lock

No

Power Supply

100~240VAC, 50/60Hz
Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)

Dimensions ( W x D x H )

17.32*16.55*1.73 in. (440*420*44 mm)

Mounting

Rack Mountable

Max Power Consumption

58.82W (220V/50Hz)

Max Heat Dissipation

200.69 BTU/h

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables

TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M

Max Number of Stacking Ports Installable

2 SFP+

Stacking Speed (Per Port)

20 Gbps (Full-Duplex)

No. of Units Per Stack

8

Switching Capacity

Up to 176Gbps for a standalone switch

Packet Forwarding Rate

Up to 130.9Mpps for a standalone switch

MAC Address Table

32K

Packet Buffer Memory

4MB

Jumbo Frame

12KB

Number of Routes

8K IPv4

Number of Static Routes

256 IPv4

Number of IP Interfaces

128 IPv4

Quality of Service

Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Ingress/Egress DiffServ
Port/Flow- based Rate Limiting
Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3
MVR
802.3ad LACP (Up to 64 aggregation groups, 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control

VLAN

Supports up to 4K VLANs simultaneously
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

Security

IP-MAC-Port-VID Binding
IEEE 802.1X
AAA
Radius/Tacacs+ Authentication and Accounting
DoS Defence
Dynamic ARP inspection (DAI)
IP Source Guard
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Access Control list
Broadcast/Multicast/Unknown-unicast Storm Control

L3 Features

Wire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
SYSLOG & Public MIBS
Dual Image
IPv6 Management

Certification

CE, FCC, RoHS

Package Contents

Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
