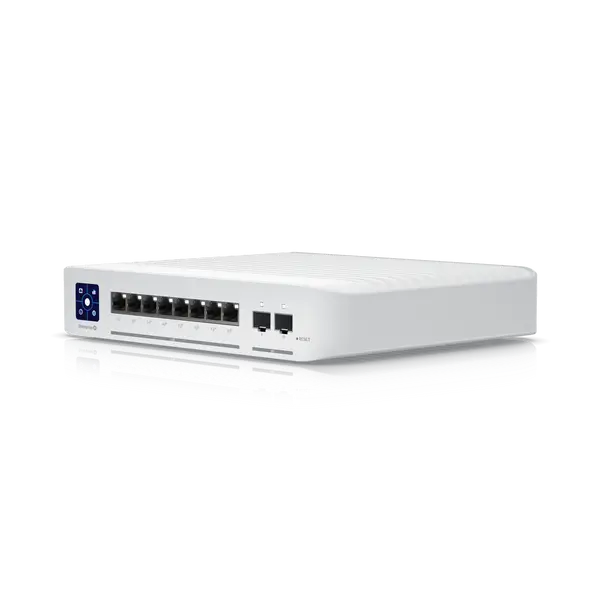

Thiết bị mạng Enterprise Switch UniFi USW-Enterprise-8-PoE

Thông số kỹ thuật

Dimensions

200 x 248 x 44 mm

Weight

2.4 kg

Enclosure material

Polycarbonate

Mount material

Polycarbonate

Hardware

Management interface

Ethernet In-Band

Networking interface

(8) 2.5 GbE, PoE+ RJ45 ports

SFP+ Interface

(2) 10G SFP+

PoE interface

(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput

40 Gbps

Switching capacity

80 Gbps

Forwarding rate

59.52 Mpps

Max PoE power

120W

Power method

(1) 100-240V AC, 2A Max., 50/60 Hz, universal input

Power supply

AC/DC, internal, 150W

Max. PoE+ wattage per port by PSE

32W

Voltage range PoE mode

44-57V

Voltage range PoE+ mode

50-57V

LCM Display

(1) 1.3 inch touchscreen

Mounting

Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE.)

ESD/EMP protection

Air: ± 16kV, contact: ± 12kV

Operating temperature

-5 to 45° C (23 to 113° F)

Operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

LEDs

System

(1) Power: blue/white
Flashing white: bootup in progress
Flashing blue: firmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted

Ethernet

White: link/activity

SFP+

White: link/activity
