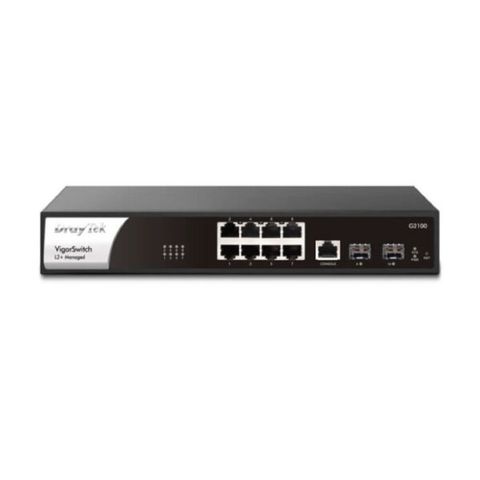

Thiết Bị Mạng Switch Draytek 8 Port Vigor G2100

Web Interface

HTTP, HTTPS

Command Line Interface

Telnet, SSH v2

OpenVPN Client

Certificate-based authentication

User Authentication

Local Database, RADIUS, TACACS+

SNMP

v1, v2c, v3

Private MIB

v

RMON Group

1, 2, 3, 9

LLDP

LLDP-MED, Media Endpoint Discovery Extension

Mail Alert

Port Status, Port Speed, System Restart, IP Conflict, Harware Monitor, Device Check, ONVIF Throughput Threshold

Syslog

v

2-Level Admin Privilege

v

Multiple Admin Accounts

v

Managed by VigorRouter SWM

v

Managed by VigorConnect

v

Managed by VigorACS 2

v

Config File Export/Import

v

SNTP (Simple Network Time Protocol)

v

Diagnostics Tools

Port Mirroring, Ping, Cable Test

VLAN

Max.Number of VLAN

256

VLAN Type

802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN

802.1x Guest VLAN

v

Port Isolation

v

GVRP

v

Q-in-Q

Basic

ONVIF Surveillance

Discovery

v

Surveillance Topology

v

Real-Time Video Streaming

v

ONVIF Device Maintenance

Device Info, Reset Factory Default, Time Settings, Reboot

QoS

Number of QoS Queues

8

Queue Scheduling

SPQ, WRR

CoS (Class of Service)

802.1p CoS, DSCP, CoS-DSCP, IP Precedence

Rate Limit & Shaping

v

Security

Access Control List

MAC, IPv4, IPv6

Storm Control

Broadcast, Unknown Multicast, Unknown Unicast

DoS Defense

v

802.1x Port Access Control

v

IP Source Guard

v

IP Conflict Detection

v

IP Conflict Prevention

v

Loop Protection

v

Dynamic ARP Inspection

v

DHCP Snooping with Option 82

v

Link Aggregation

Max. Number of Group

4

Max. Number of Member in Each Group

8

Type

Static, LACP

Traffic Load Balancing

MAC Address, IP/MAC Address

Multicast

IGMP Snooping

v2, v3 (BISS)

IGMP Querier

v

MLD Snooping

v1, v2 (Basic)

Max. Number of Multicast Group

256

Group Throttling

v

Group Filtering

v

MVR (Multicast VLAN Registration)

v

Layer 3 Features

Static Route

v

VLAN Route

v

DHCP Server

 (Since firmware v2.6.8)

AAA

Authentication Server

RADIUS, TACACS+

Port Authorization

v

Management Account

v

RADIUS Attribute Assignment

User Privilege, VLAN

Accounting

v

Multiple Server

v

Buffer Size

4.1 Mbit

Switching Capacity

20 Gbps

Forwarding Rate

14.88 Mpps (64 bytes)

MAC Address Table

8k

Jumbo Frame

Up to 9 KB
