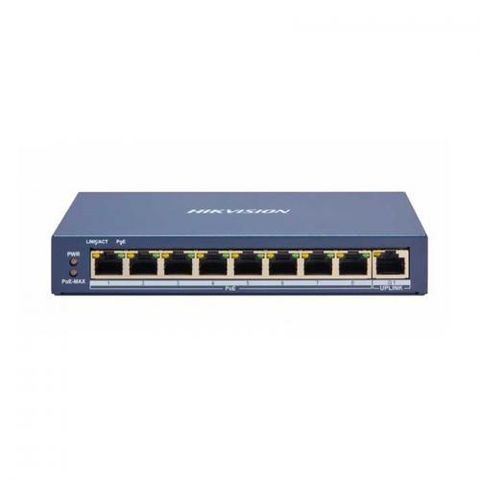

Đặc tính kỹ thuật Model DS-3E1309P-EI Network parameters Port number 8 × 100 Mbps PoE RJ45 ports, and 1 × gigabit network RJ45 port Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab Forwarding mode Store-and-forward switching Working mode Standard mode (default), Extend mode Ports for long-distance transmission Ports 1 to 8 MAC address table 16 K Switching capacity 3.6 Gbps Packet forwarding rate 2.6784 Mpps Internal cache 4 Mbits PoE power supply PoE standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at PoE power pin Ports 1 to 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously PoE port Ports 1 to 8 Max. port power 30 W PoE power budget 110 W Software function Device maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters. Typology display Support typology display Port configuration Support rate, flow control, and switch configuration PoE function IEEE 802.3at/af device provides power supply VIP ports function Support data of ports in red area forwarded in priority Device status alarm Support the device status, PoE_MAX and PoE status alarm Network management Support client management Port statistics Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics General Shell Metal material, fan-free design Net Weight 0.35 kg Dimension (L × H × D) 170 mm × 27.6 mm × 93.1 mm Operating temperature 0°C to 40°C (32°F to 104°F) Storage temperature -40°C to 85°C (-40°F to 185°F) Operating humidity 5% to 95% (no condensation) Storage humidity 5% to 95% (no condensation) Power supply 48 VDC, 2.5 A Max. power consumption 120 W Power source 120 W Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| |
Thay Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Mới Chính Hãng Có Tài Trợ
Cung Cấp Và Trao Đổi Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei
Bán Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Chính Hãng Có Đổi Cũ Lấy Mới
Chào Mừng Quý Khách Đến Với Trung Tâm Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei
Tư Vấn Dịch Vụ 24/7: 028.3844.2008
Kính Chào Quý Khách!
Trung Tâm kỹ thuật và công nghệ, bảo vệ Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Trên Toàn Quốc , Phục Vụ Cả Ngày Lễ Và Chủ Nhật Không Nghỉ Trua 7h30-20h30
Bạn Lăn Tăn Mua Trả Góp 0% Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Ở Đâu? Làm Sao Để Thuê Được Giá Rẻ? Cùng Viện Trungtambaohanh.com Tìm Hiểu Về Vấn Đề Này Nhé.
- Bạn Có Nhu Cầu Dùng Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Ngay Bây Giờ
- Bạn Đang Lăn Tăn Giá Mắc Lại Còn Bệnh Vặt Phải Nhờ Người Quen Biết Để Giải Quyết Nhanh Làm Sao Có Ngay Dùng Liền Nếu Phù Hợp Với Bạn... Sau Đó Mới Mua
- Bạn Muốn Trải Nghiệm Dịch Vụ Cho Thuê Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei Học Cách Làm Mới Tiết Kiệm Tg Chi Phí
- Bạn Muốn Sử Dụng Điện Thoại Laptop Surface Trong Thời Gian Ngắn Hạn.....
Chính Vì Vậy:
Viên Trungtambaohanh.com Cung Cấp Dịch Vụ Bán Trả Góp 0% , Cho Thuê Thiết Bị Mạng Switch Smart 8 Ports Hikvision Ds-3e1309p-ei- Thuê Vip Với Nhiều Phương Án Linh Hoạt!
Phương Châm: Dùng Bao Nhiêu Trả Bấy Nhiêu - Hợp Mua - Giải Quyết Công Việc Trước Mắt Đã.
Gọi Ngay Cho Mr Minh - 0903 613 753 - 1800 1080 Để Tìm Hiểu Và Lựa Chọn Dịch Vụ Thuê Hợp Với Bạn.
