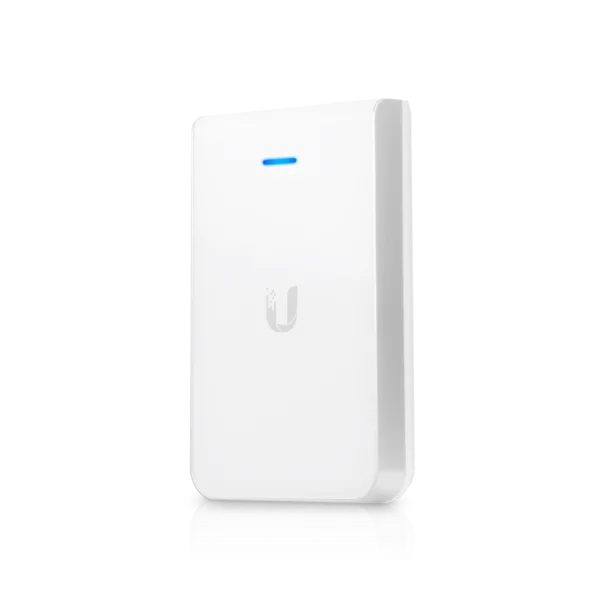

UniFi AP AC In Wall (UAP AC IW)

UAP-AC-IW

Dimensions

139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")

Weight

200 g (6.43 oz)

Networking Interface

(3) 10/100/1000 Ethernet Ports

Buttons

Reset

Power Method

802.3at PoE+ Supported

Power Supply

UniFi PoE Switch (Not Included)

Power Save

Supported

PoE Out

48V Pass‑Through (Pins 1, 2+; 3, 6‑)

Maximum Power Consumption
with PoE Passthrough

7W
19W*

Maximum TX Power
2.4 GHz
5 GHz

20 dBm
20 dBm

Antennas
2.4 GHz
5 GHz

(1) Dual‑Band Antenna, Single‑Polarity
1 dBi
2 dBi

Wi-Fi Standards

802.11 a/b/g/n/r/k/v/ac

Wireless Security

WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to 8 per Radio

Mounting

1‑Gang Electrical Wall Box (Not Included)

Operating Temperature

‑10 to 50° C (14 to 122° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
