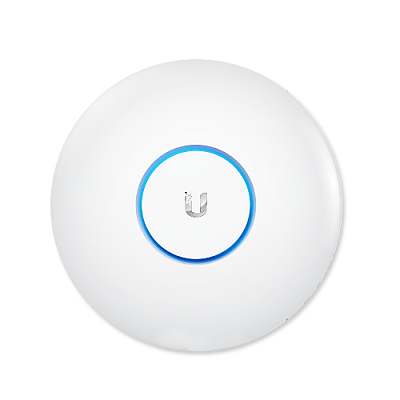

UniFi AP AC PRO (UAP AC Pro)

UAP-AC-PRO

Dimensions

196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")

Weight
With Mounting Kits

350 g (12.4 oz)
450 g (15.9 oz)

Networking Interface

(2) 10/100/1000 Ethernet Ports

Port

(1) USB 2.0 Port

Buttons

Reset

Power Method

Passive Power over Ethernet (48V), 802.3af/802.3at Supported
(Supported Voltage Range: 44 to 57VDC)

Power Supply

UniFi Switch (PoE)

Power Save

Supported

Maximum Power Consumption

9W

Maximum TX Power
2.4 GHz
5 GHz

22 dBm
22 dBm

Antennas

(3) Dual‑Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi

Wi-Fi Standards

802.11 a/b/g/n/r/k/v/ac

Wireless Security

WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to 8 per Radio

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

‑10 to 70° C (14 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
