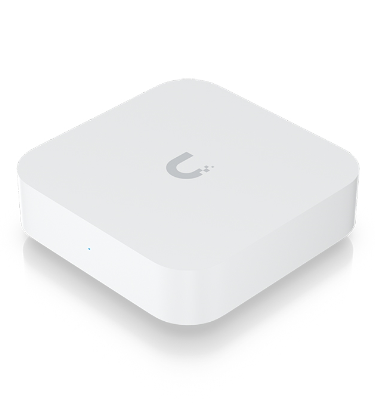

UniFi Next-Generation Gateway Lite | UXG Lite

Mechanical

Dimensions

98 x 98 x 30 mm (3.9 x 3.9 x 1.2")

Weight

320 g (11.3 oz)

Enclosure material

Polycarbonate

Hardware

Processor

Dual-core ARM® Cortex®-A53 at 1 GHz


Memory information

1 GB DDR3L


Management interface

Ethernet
Bluetooth 5.1


Networking interface

(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port

Power method

USB type C (5V/3A)

Supported voltage range

100–240V

Max. power consumption

3.83W

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security

Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking

License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.

Application Requirements

UniFi Network

Version 8.0.7 and later
