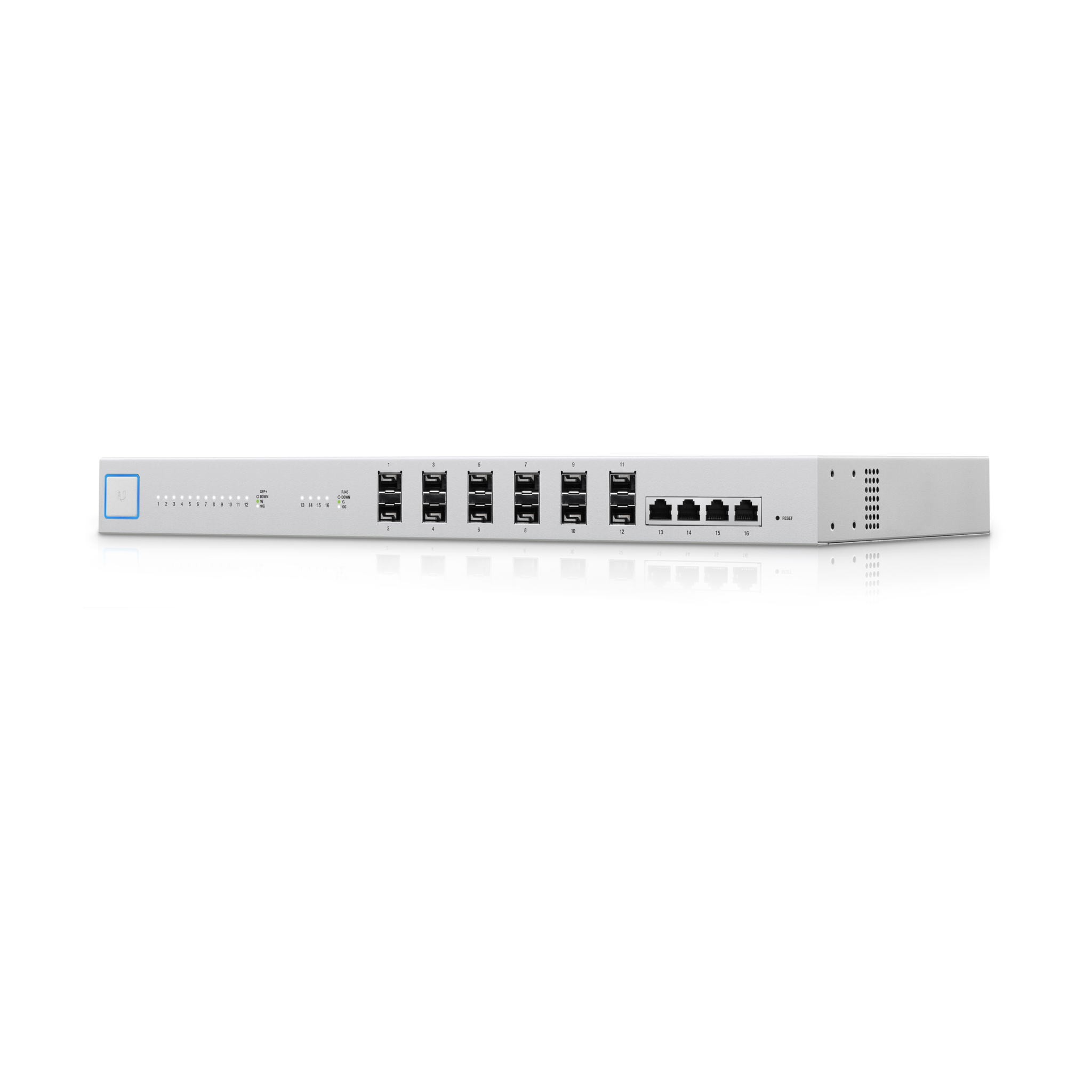

UniFi Switch US-16-XG

US‑16‑XG

Dimensions

443 x 221 x 43 mm (17.44 x 8.70 x 1.69")

Weight

Without Mount Brackets

With Mount Brackets

2.62 kg (5.78 lb)

2.71 kg (5.97 lb)

Enclosure Characteristics

SGCC Steel

Total Non‑Blocking Throughput

160 Gbps

Switching Capacity

320 Gbps

Forwarding Rate

238.10 Mpps

Max. DC Power Consumption

36W (Excludes SFP/SFP+ Modules)

Power Method

AC

DC

100‑240VAC/50‑60 Hz, Universal Input

DC 56W, 57 to 20V, with
48/24VDC Terminal Block

Supported Voltage Range

100 to 240VAC

57 to 20VDC

Power Supply

AC/DC, Internal, 56W DC

LEDs Per Data Port

Speed/Link/Activity

Sound Level*

Fan Level 0

Fan Level 1

Fan Level 2

Fan Level 3

1.0 dBr

10.7 dBr

12.2 dBr

12.8 dBr

Networking Interfaces

(12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports

Management Interface

(1) RJ45 Serial Port Out‑of‑Band, Ethernet Ports In‑Band

Certifications

CE, FCC, IC

Rack Mount

Yes, 1U High

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature

‑5 to 40° C (23 to 104° F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300‑019‑1.4 Standard
