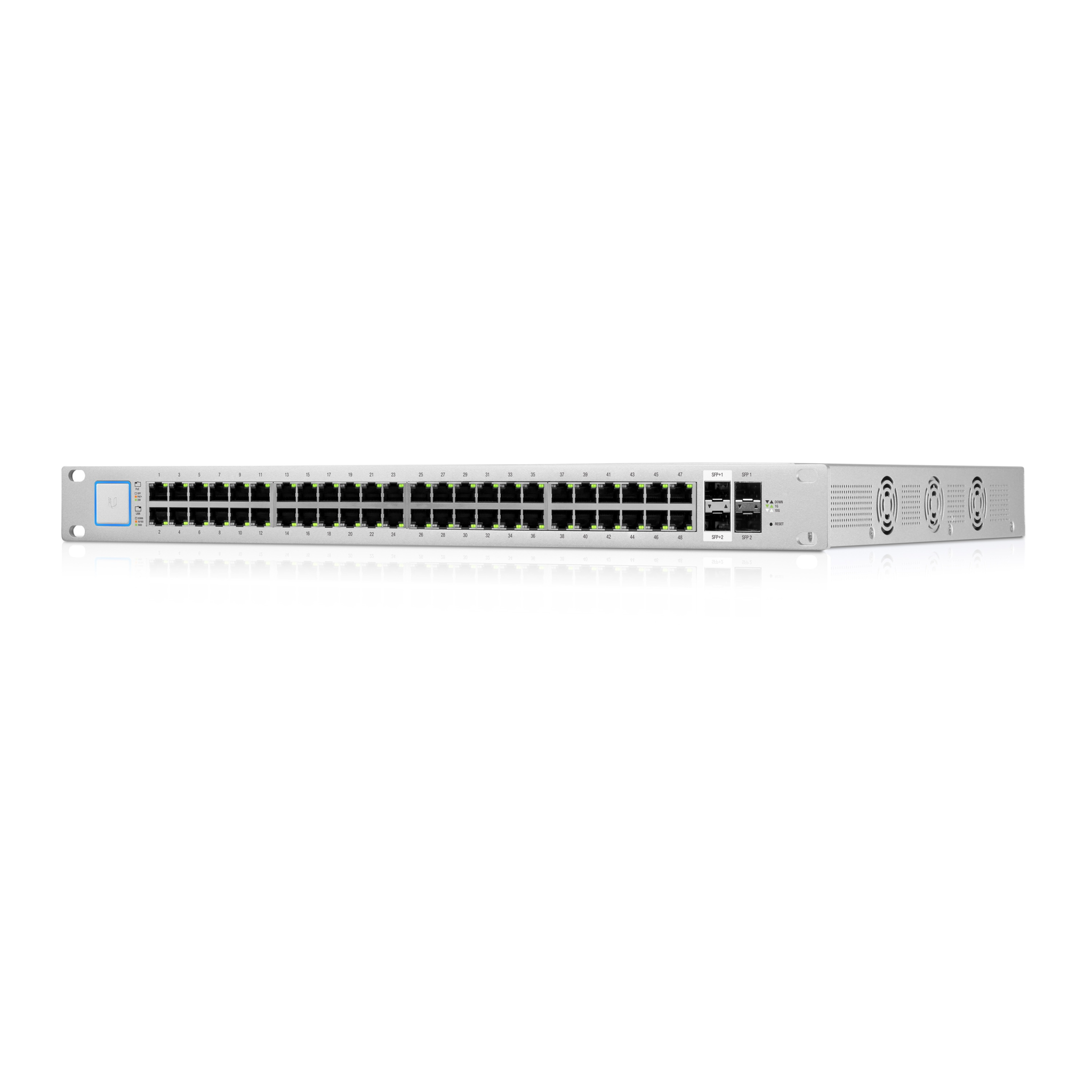

UniFi Switch US-48-750W

US-48-750W

Dimensions

485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")

Weight

6.5 kg (14.3 lb)

Networking Interfaces

(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports

Management Interface

(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput

70 Gbps

Switching Capacity

140 Gbps

Forwarding Rate

104.16 Mpps

MAC Address Table

16384

Maximum Aggregations

6

Monitoring Sessions

1

Maximum VLANs

255

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 750W DC

Max. Power Consumption

Including PoE Output

Excluding PoE Output

750W

64W

LEDs Per Port

RJ45 Data Ports

SFP Data Ports

PoE, Speed/Link/Activity

Speed/Link/Activity

Sound Level*

Fan Level 0

Fan Level 1

Fan Level 2

Fan Level 3

12.1 dBr

18.1 dBr

21.6 dBr

24.7 dBr

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

PoE+ Per Port

PoE Interfaces

PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE

34.2W

Voltage Range 802.3at Mode

50–57V

Max. Passive PoE Wattage per Port

17W

24V Passive PoE Voltage Range

20-27V
