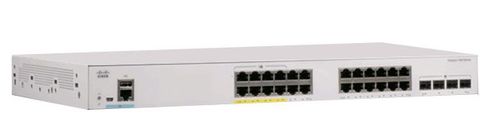

Thiết bị chuyển mạch Switch Cisco C1000FE-24P-4G-L – báo giá phân phối switch Cisco C1000FE-24P-4G-L Cisco Catalyst 1000 Series một trong những dòng Switch Access được tích hợp nguồn PoE trên các Ports Fast Ethernet mang tới cho người dùng sự tiện lợi cho việc triển khai lắp đặt và giảm thiểu được chi phí một cách hiệu quả.
Cicso C1000FE-24P-4G-L sở hữu thiết kế với 24 cổng 10/100 Ethernet PoE+ ports and 195W PoE budget, 2 cổng 1G SFP and RJ-45 combo uplinks là một sự chọn lựa hoàn hảo cho các doanh nghiệp vừa và nhỏ với nhu cầu sử dụng không quá cao hiện nay.
| Model | C1000FE-24P-4G-L |
| General | |
| Gigabit Ethernet / FE ports | 24 10/100 RJ45 PoE+ |
| Uplink interfaces | 2 SFP/ RJ-45 combo and 2 SFP |
| PoE+power budget | 195W |
| Fanless | Y |
| Dimensions (WxDxH) | 17.48 x 13.78 x 1.73 inch |
| Weight | 4.52kg |
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 6.4 Gbps |
| Switching bandwidth | 12.8 Gbps |
| Forwarding rate (64‑byte L3 packets) | 9.52 Mpps |
| MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 384 |
| IPv6 security ACEs | 256 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Environmental | |
| Up to 5,000ft (1500 m) | -5 to 45 deg C |
| Upto 10,000 (3000 m) | -5 to 40 deg C |
| Operating altitude | 10,000 ft (3,000m) |
| Operating relative humidity | 5% to 90% at 40 deg C (non-condensing) |
| Storage temperature | -13 to 158F (-25 to 70C) |
| Storage altitude | 15,000 ft (4500m) |
| Storage relative humidi | 5% to 95% at 65 deg C (non-condensing) |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.23A to 0.35A |
| Power rating (maximum consumption) | 0.025 kVA |
| Safety and compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 |
| GB 4943.1-2011 | |
| EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Connectors and interfaces | |
| Indicator LEDs | Per-port status: link integrity, disabled, activity |
| System status: System | |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
| CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet |
| Models have external power supply | |
